Thursday, 12 January 2012

JAN-12 Sound taking notes

Sound
 There are two general types of waves, TRANSVERSE and LONGITUDINAL. The motion of vibrating and oscillating source is called simple harmonic motion.
    Transverse wave is the wave that the direction of travel of the wave is perpendicular to the motion of the source. Longitudinal wave is the wave that the travel of the wave is parallel to the motion of the source
 Example: water waves area combination of the action of both kinds of waves, transverse and longitudinal. The particles of water move in circular path, sometimes they are parallel to the direction of wave motion, and at other times they are perpendicular to the direction of wave motion.
 Terms in periodic waves: Cycle is a complete sequence of motion that repeats itself
The wavelength (λ) is the length in meters of one cycle.
 The period (T) is the time to complete one cycle in seconds.
The frequency is the number of cycles in a given time period.
 Hertz (Hz) is s-1
 The amplitude of a wave is a maximum disturbance of a wave from its zero point in meters.
 Wave equation: v=    and T=    v= λf
 Sound is a longitudinal wave that requires a medium to travel in. Air cannot sustain a transverse motion because air particle drift off.
 The dense areas of air transmitting a sound wave are called compressions and the less dense areas are called rarefactions.
 The folds of skin vibrate as the air rushes by them, producing sound in the form of compression and rarefaction of air. These waves are amplified and modified by the group of parts collectively called the resonators. They are the pharynx, mouth, and nasal cavity.
 Factors that are affecting the speed of sound are temperature and density.
The stiffer the material, the faster the speed of sound. Molecules of a solid behave as if they were held together by springs. They proximity allows the vibrations caused by sound energy to be easily transmitted. Gas molecules are separated by great distances. Hence, transmission of energy is less efficient.
 Dependence of speed on temperature: v=332m/s+(0.6 )(T x°c)
 When aircraft gets close to or go faster than the speed of sound, a different unit is often used to describe their speed. It is called the Mach number.
 If you are travelling at greater than Mach 1, your speed is said to be supersonic. If you are below Mach 1, your speed is subsonic. Speeds greater than or equal to Mach 5 are hypersonic.
 Sound barrier is used in aviation to describe the buildup of sound waves in front of a plane as it nears the speed of sound.
 Sonic Boom: as a plane flies over a region, the pressure cone follow, creating sonic booms for that area.
At Mach 1, a barrier of pressure builds up. As the plane breaks through it, the shock wave is left behind, which travels down to the surface of Earth. We hear it as a loud “boom”.

Saturday, 10 December 2011

DEC-10 Cannon Lab Questions

Cannon Lab Quesitons
1. Theses two baffles are designed to increase the presure. Baffles are to decrease the area for the gas to to through. The more the pushing force is, the farther the cannonball will go. Also, these two baffles are metal. Metal is good conductive material. So they can conduct heat very well in order to create a better surrounding area for the burning.

2. The shaking of the stack of cans is to ensure that everywhere in the cannon is fill with fuel. The launching will be more powerful if ethnol can be reacted very well. Shaking is done to permeate ethnol compeletly for a better result.

3. Chemical energy to Heating energy and Sound energy to Kinetic energy to Gravitational energy

4. Propellant. gasoline, methanol, liquid hydrogen, and butanol can be also used in place of the ethnol.

5. One of the Newton's laws is applied is Newton's third law, reaction and action. Accroding to Newton's third law, it states that for every action force, there is an equal and opposite reaction force. When the cannon ball is pushed out of the cannon, the cannonball also pushes the cannon backward. They are action and reaction.

Monday, 28 November 2011

NOV-28 Famous Cannons

Famous Cannons
The mt howitzer barrel I designed consisted of 6 pieces. The "Cascabel" ( the ball at the back of the cannon barrel - Spanish for "coiled snake" ) The "Breech Plate" ( the plate at the back of the tube which holds the cascabel ) The "Chamber Plug" ( the plug in the rear end of the tube ) The "Trunnions" ( the 2 support pivots near the center of the barrel ) and the "Tube" itself. As you can see, when the separate pieces are assembled, they complete the mt howitzer barrel.



The Cascabel started out as a purchased, solid, high strength 3" diameter, trailer hitch ball. This is the kind of ball that is used on fifth-wheel trailer hitches. Although it cost about $50, a lot of machining time was saved. The ball was finish shaped on a lathe, and then cut to length. The Breech Plate was made from a 1-1/2" thick slice of 8" diameter 1018 HR bar. Cost was about $20. It was lathe turned and bored through to receive the Cascabel. The Cascabel was pressed into the Breech Plate and then plug welded in place.



The next item to be fabricated was the Chamber Plug. It was machined from a piece of 1018 HR bar, 4-3/4" dia. by 8" long and cost $25. The plug's inside ( Chamber ) shape accepts the powder charge. The name "howitzer" in a Mountain Howitzer cannon, defines that it will have a reduced chamber diameter that gradually tapers to the full bore diameter. Originally, in the 1850s, this chamber size was matched exactly to the volume of 1/2 pound of black powder and measured 3-3/8" dia. by 2-3/4" long.

Note: The inside Chamber size of this barrel was reduced from the original 1850's size of 3.40" diameter, to a smaller 2.61" diameter. This smaller dia. size takes into account that our modern powder charges are not going to be wrapped in a bulky flannel or cotton bag like the original 1850's powder charges were. Also, this reduced Chamber size resulted in a 25% increase in wall thickness in this area of the howitzer barrel. This added a modern safety factor to our modern howitzer barrel; and made for easier loading of the powder charge. Compare the difference in the illustrations below.




The outside dia. of the Chamber Plug was left .030" oversize for now. A tight, slide fit, matching the I.D. of the barrel tube, would be machined later. The deep curved relief at the back of the plug was designed for the 1 inch x 2 inch "J-weld" that would be used to weld the plug into the back of the barrel.

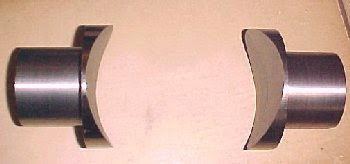

The Trunnions were lathe turned as a single piece also using 1018 HR bar. Cost was $25. The ends were stepped to correspond to the finished dimensions of the individual trunnions. Once completed, the center section was milled out to the O.D. of the barrel diameter at the trunnion mounting location. When the center material was milled away, 2 perfectly contoured Trunnions remained.



The final piece of the barrel assembly was the Barrel Tube itself. It consisted of a 33-1/8" long piece of 1026 HR "Seamless" steel Tube, 7" O.D. with 1-1/4" wall. ( nominal 4-1/2" I.D. ) It was special ordered and cost less than $300. The two important specifications of this material are "Seamless" and "Hot Rolled". ( or "Hot Formed" ) Specification of this material is as follows:

Tensile Strength, psi = 70,000 - Yield Strength, psi = 47,000 - Elongation, % in 2" = 28

These specs are significantly higher (2 times) than original 1850's Mountain Howitzer specs.



Most fortunate for me, was a friend offering the use of his large metal lathe for my Mountain Howitzer cannon project. The lathe was a 1940's vintage LaBlond that saw much use during WWII. It easily accepted the large barrel tube which weighed in at 175 pounds. One end of the tube was supported in a 3-jaw chuck, while the other end had a pressed-in temporary plug ( $15 ) for use with a live center. The muzzle end was machined first, then the Mt. Howitzer tube was turned end-for-end to machine the breech. The taper was machined by using a very slow power feed, synchronized with a "wrist watch timed" manual cross-feed.



When the outside machining was finished, the surface was flat-filed and sanded and then polished smooth. At this point, the tube was sent to a local machine shop to have the inside diameter bored-through the full 33" length. ( Unfortunately this boring operation was beyond the capability of the equipment I was using. ) Specifications for the bore-through was "minimum clean-up" to a maximum I.D. of 4.60 inches, with a closely held "tight tolerance" for the first 7-1/2" depth at the breech end that matched the Chamber Plug diameter and length specs. Cost for this machining was a very reasonable $150.

When the 6 individual pieces of the Mt. Howitzer barrel were placed together, they looked like this.



After the boring of the Barrel tube was completed, I machined the final O.D. of the Chamber Plug to provide a matching "tight-slide-fit" into the finished breech end of the tube. This end of the tube was also machined leaving a small .030" shoulder at a depth of 7-1/2" to match the length of the Chamber Plug. This step ensured proper location of the plug for welding.



With all the barrel parts completed, they were taken to an "Expert Welder" in our area. Since quality welding is the most critical factor in fabricating a barrel, I wanted to be sure I had a "certified" welder doing the job. In fact, the welder I chose was also certified for "pressure vessel" welding. As an added precaution, I contacted a Welding Engineer ( from the Society of Professional Welding Engineers ) to review and evaluate the intended welding process.

The barrel welding operation is not a "do it yourself" project. For safety sake, hire a professional!

Three important factors came into play in welding. First, the preheating of the mating parts prior to welding. ( barrel and plug were preheated to 600 degrees Fahrenheit ) Second, the use of proper "welding wire" material to match the materials being welded. ( series 70 wire was used ) Third, the "slow cooling" of the barrel after welding. ( barrel was slow cooled, in still air, over a 6 hour period)

Over 5 pounds of weld was used to "J-weld" the Chamber Plug in place.



Next, the Breech Plate ( with its pre-welded Cascabel ) was welded over the Chamber Plug with a "deep penetrating" continuous 3/8" weld.



Prior to welding the Trunnions, their locations were precisely measured and scribed onto the sides of the barrel. Shallow 1/4" diameter blind-holes were drilled ( 1/8" deep ) into the barrel at each location. A corresponding 1/4" diameter stud was pressed into the inside center of each Trunnion. Each trunnion was final fitted and number stamped. Matching numbers were stamped onto the barrel to prevent any mix-up prior to their being welded. ( Precisely aligned trunnions are necessary for accurate shooting of the completed mountain howitzer cannon.)



The Trunnion locating studs prevented shifting of position during welding. A deep undercut "bevel" was ground onto the Trunnion flanges prior to their being welded. As the Trunnions were welded, a large radius weld was filleted up onto the barrel. Over 12 linear inches of weld secured each trunnion to the barrel tube. Too much weld here is better than too little, although cleaning-up the excess weld proved to be a very time-consuming task.

The total welding time for all the barrel pieces was about 4 hours at a reasonable cost of $200.



It was now time to test fire the barrel. An undersize 3/16" dia. fuse hole was drilled through the top of the barrel at a precise location angling 1/2" forward of the rear of the Chamber. The first shot honors went to my son-in-law for his birthday present. A standard load of 1/2 pound black powder was used for the evening shot. The fuse was lit and 20 seconds later the BIG BANG told us we had a completed Mountain Howitzer cannon barrel.



Now for the hand finishing.

An air powered die grinder with a small cut-off wheel was used for most of the weld clean-up task. After dozens of hours of grinding, filing, and polishing, the Mountain Howitzer barrel was finished. Last item to do was to enlarge the Fuse hole to the proper .200 diameter.



Now that my mountain howitzer barrel was completed, I added details to make it look authentic. Original Civil War Mountain Howitzer barrels had a serial number stamped to the top front face of the barrel. There I stamped serial number "10663". Original Mountain Howitzer barrels were inspected and the inspector marked his initials along the bottom front face of the barrel. There I stamped "J.B.P".



On the rear Breech plate, above the cascabel ( sometimes below ) original howitzer tubes were stamped with the exact weight of the barrel. There I stamped "225".



The right Trunnion face on an original barrel was typically stamped with the Company name and the city of manufacture. There I stamped "BS & CO." and "NEENAH".



And, original barrels had the left Trunnion face stamped with the year of manufacture. There I stamped "1861".



So, how did I come up with all the numbers for my mountain howitzer barrel? The serial number "10663" stands for a date, 10/6/1863. That was the date of the battle when 1st Lt. James Burton Pond won the Medal of Honor using a Mountain Howitzer. (also 106 days to complete this project in June, [6] of 2003) The Inspector initials stamped, "J.B.P." stand for James Burton Pond.

The manufacturer, "BS & CO." stands for me, "BS" for Buck Stix, and the "& CO." for all the people who helped me with this project. In addition, the "BS" also stands for the city, Baxter Springs, Kansas, where the Historic battle against Quantrill's Raiders took place.

The Trunnion date I used, "1861" is the year that J.B. Pond enlisted and organized the 3rd Wisconsin Cavalry, Company C.

The only real number with no hidden meaning is the "225
", which is the actual weight of my finished barrel. I wanted my barrel to "look" authentic, but I didn't want to fool anyone into thinking it was a genuine Antique so I improvised. ( As a side note, original documented Mountain Howitzer barrels weighed between 217 and 230 pounds. This barrel weighed 225 pounds, right in the ballpark. )

Wednesday, 9 November 2011

NOV-09 paper tower report

     This is our paper tower and Patrick gave it a name as "Patrick's height"!!!!! yeahhhh

     We made our paper tower into tetrahedral because triangle is the most stable shape we could make today. So basically we roll the newspaper into four sticks. Three of all four sticks creat a pyramid. The ends of the three sticks produce almost a right triangle. Triangle is stable enough to be a base for the entire paper tower. We use three whole pieces of newspaper to make the supporters because the base should be strong enough to support the tower. Furthermore, we try to make our paper tower as slim as possible. So we shrink the size of the base triangle. It works!!!

     So the physics we used in this paper tower is, firtst, the vector. To make it straight up, we want the force to point straight up or down.The three supporters are like vectors. When they add together, they just form a vector points vertically. so the addition of every vectors in the paper tower should be zero otherwise the tower may not stand because the force makes the movement. Secondly, the physics stuff we used is the interacting forces. The supporters give force to the top of tower.The top of the tower has gravity. Those two kinds of force cancel out finally. The interacting forces will cancel out at last. And then we just get a standing paper tower.

Monday, 7 November 2011

NOV-07 Building skyscraper

     The central support structure of a skyscraper is its steel skeleton. Metal beams are riveted end to end to form vertical columns. At each floor level, these vertical columns are connected to horizontal girder beams. Many buildings also have diagonal beams running between the girders, for extra structural support.
     In this giant three-dimensional grid -- called the super structure -- all the weight in the building gets transferred directly to the vertical columns. This concentrates the downward force caused by gravity into the relatively small areas where the columns rest at the building's base. This concentrated force is then spread out in the substructure under the building.
An example of a skyscraper ground floor design and 6uilding frame.     In a typical skyscraper substructure, each vertical column sits on a spread footing. The column rests directly on a cast-iron plate, which sits on top of a grillage. The grillage is basically a stack of horizontal steel beams, lined side-by-side in two or more layers (see diagram, below). The grillage rests on a thick concrete pad poured directly onto the hard clay under the ground. Once the steel is in place, the entire structure is covered with concrete.
      Designing a low-rise building involves creating a structure that will support its own weight (called the dead load) and the weight of the people and furniture that it will contain (the live load). For a skyscraper, the sideways force of wind affects the structure more than the weight of the building and its contents. The designer must ensure that the building will not be toppled by a strong wind, and also that it will not sway enough to cause the occupants physical or emotional discomfort.
    Because each design is innovative, models of proposed super tall buildings are tested in wind tunnels to determine the effect of high wind on them, and also the effect on surrounding buildings of wind patterns caused by the new building. If tests show the building will sway excessively in strong winds.
